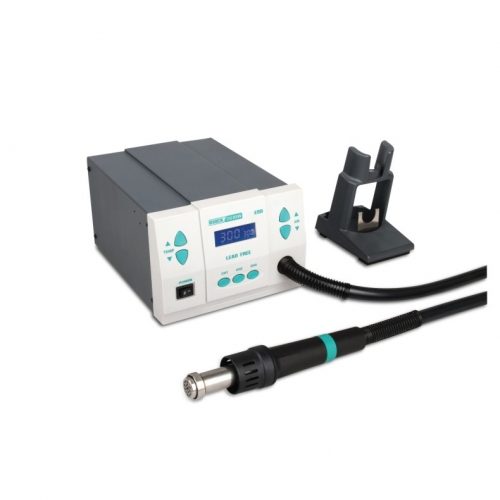

Quick 861DW Hot Air Rework Station


Product description

*** This item will ship directly from the Quick USA warehouse in California.  Please allow 1-3 days for shipping and handling. ***


● Three regular channels”CH1″, “CH2” and “CH3”, each channel’s parameters including temperature and airflow can be set.
● Password protection and key-lock functions.
● Real time operation by the magnetic switch, enter sleeping state when the handle is placed on holder.
● Auto sleeping function, parameters can be set in sleeping mode.
● Closed-loop sensor, temperature can be controlled by zero voltage triggering mode and adjusted conveniently, accurate and stable, not affected by airflow. Large power, rapid heating.
● A multipurpose unit, with brushless whirlpool motor, wide range and stepless adjustable airflow.
● An automatic cooling system can prolong the lifetime of heating element and protect the handle.

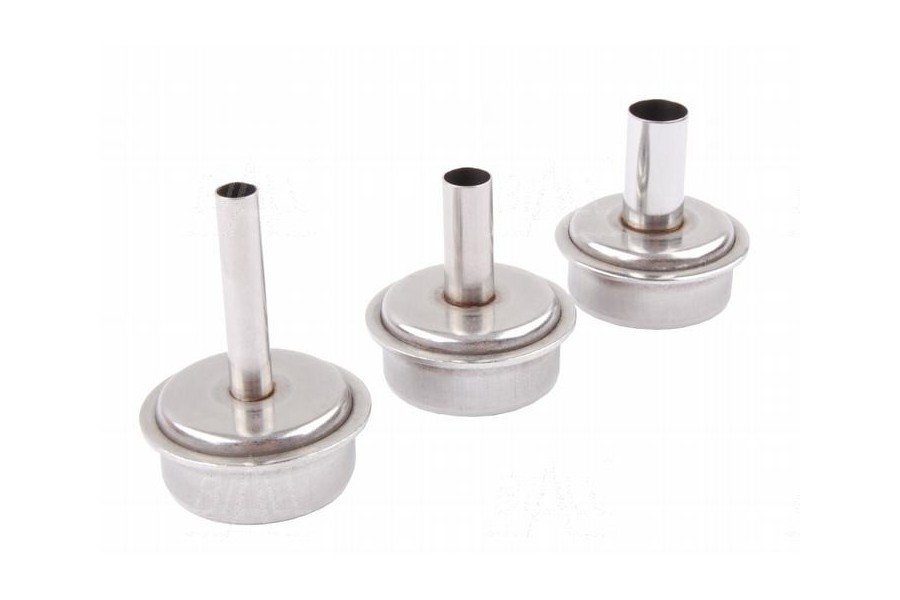

● Comes with 3 nozzles (4mm, 6mm, 8mm)

This product has a 1-year warranty.


Power Consumption 1000W
Temperature Range 100℃ -500℃
Airflow Range 1-120 class
Max Airflow 120L/min
Size(L×D×H) 188(L)×245(D)×135(H)mm
Weight 3.65kg

Additional information

Weight 10.6 lbs
Dimensions 15.25 × 13.125 × 9 in
